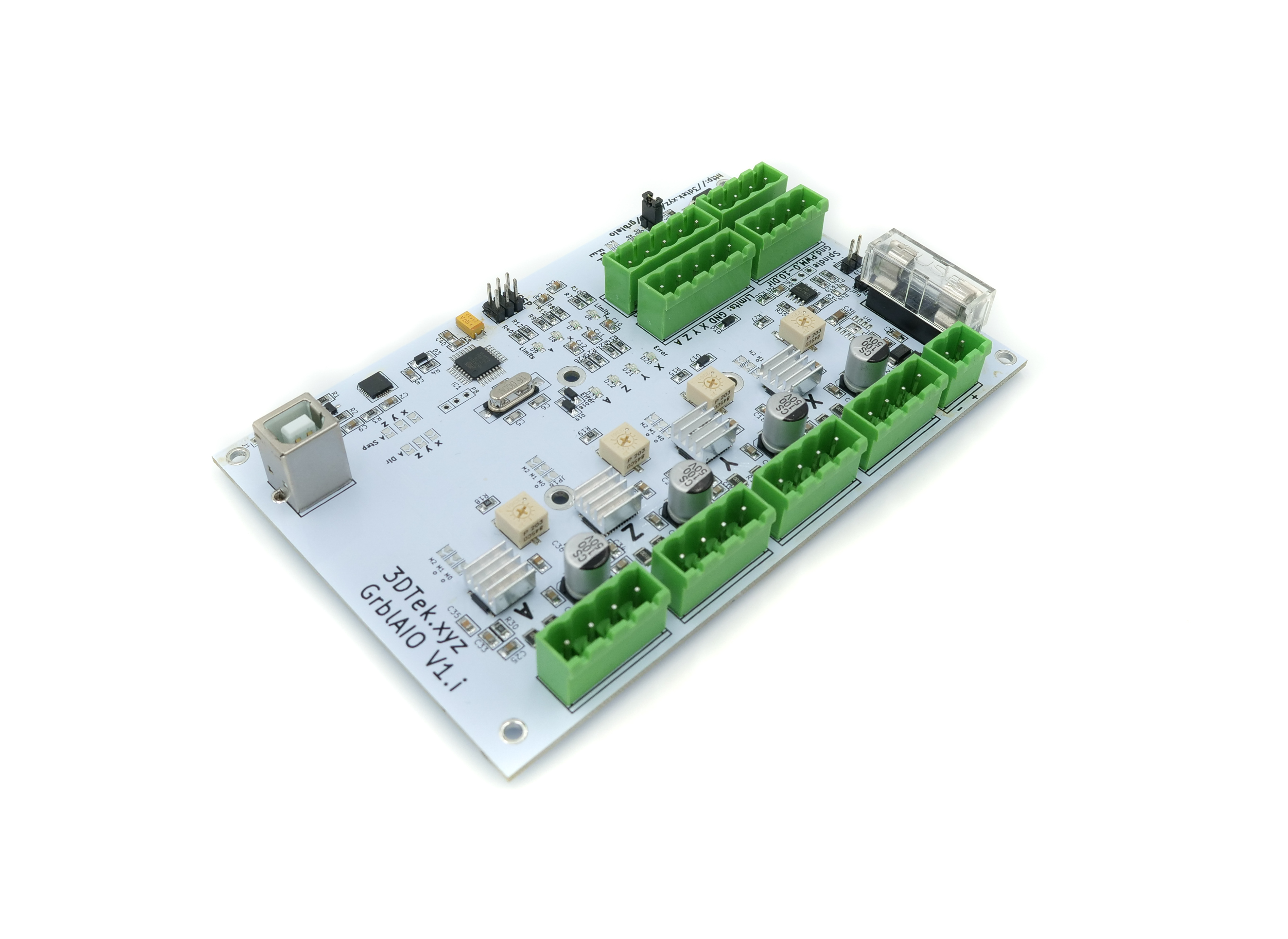

GRBL AIO – 3 Axis Control Card

$115.00

CNC control board with 3 axis (XYZ and Tandem A) stepper drivers.  Designed to control all CNC machines running GRBL with stepping motors up to 2.4A.

In Stock

Estimated delivery date 05-08-2023

GRBL Control Card

All In One Stepper Drive and GRBL based Control Card

USB connected Arduino running GRBL firmware On board drivers, with PWM and 0-10v Spindle control. Designed to drive all hobby level CNC router machines.
Ultra reliable, Opensource source Firmware delivers reliable G Code to your machine. The AiO card works on CNC Routers, Lasers and 3D Printers.

Features

  • 4 x DRV8825 onboard drivers (XYZ & Tandem A)
  • Max driving current of 2.4A
  • DRV8825 Driver fault pins can drive E stop or Feed hold signal lines if overheating!
  • Onboard Arduino Functionality (ATmega328P)
  • Onboard Serial Controller (CP2102)
  • 0-10V VFD spindle speed control and PWM spindle speed control
  • Plug in motor connections – no headers or screw terminals
  • Onboard Fuse
  • Fan mount pattern and 12v or PSU voltage Fan power options

FOR FULL PRODUCT DETAILS, PIN-OUTS & INSTRUCTIONS CLICK: HERE

AIO Board Contents

  • AIO Control Board
  • Board mount female terminal blocks
  • Heatsinks
  • Jumpers
  • Fuse
